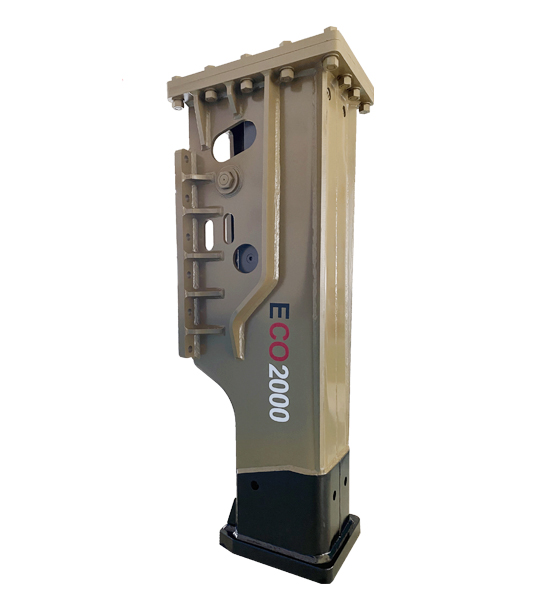

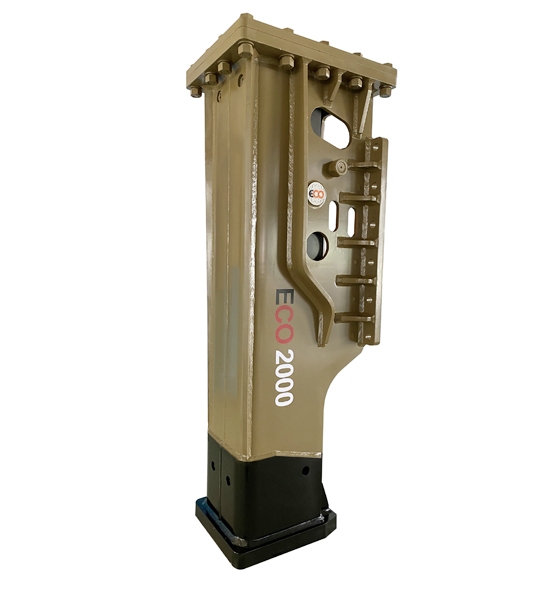

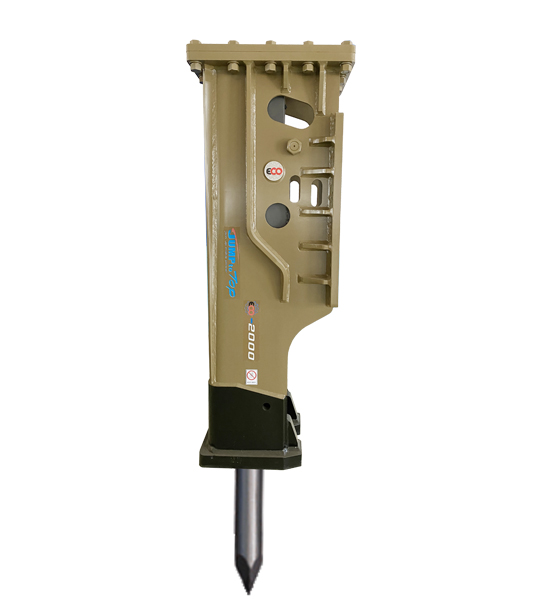

ECO 2000-SILENCED TYPE HYDRAULIC BREAKER-

ECO 2000

ADVANTAGES:
1.Low noise level.
2.Full-closed box design protects the main body from damage.
3. Suitable with a wide range of excavators.
4. Leading heat treatment technology. Heat resistance and abrasion resistance are enhanced.
5. The device can adjust the flow from excavator and power source, so it can adjust the impact force and beat frequency according to different working situation.
6. Longer use, easy maintenance.
7. Strong " hydraulic + nitrogen " impact system, steady and durable.
8. Korean equipments and technology used to guarantee the quality.

<< Previous page

Next page >>

CONTANT		UNIT	ECO400	ECO450	ECO530	ECO600	ECO680	ECO750	ECO850	ECO1000	ECO1200H	ECO1250	ECO1350H	ECO1350	ECO1400	ECO1500H	ECO1550	ECO1650	ECO1750	ECO1900	ECO2000	ECO2100
CONTANT		UNIT	SB10	SB20	SB30	SB35	SB40	SB43	SB45	SB50	HB15G	SB60	HB20G	SB70	SB81	HB30G	SB121	SB131	SB151	INDEPENDENT RESEARCH AND DEVELOPMENT
CHISEL DIAMETER		mm	40	45	53	60	68	75	85	100	10	125	135	135	140	150	155	165	175	190	200	210
CHISEL WEIGHT		kg	4	8	10	14	18	23	29	54	80	88	115	115	126	155	182	205	247	315	345	420
TOTAL WEIGHT	SIDE	Kg	70	90	120	180	250	380	510	765	-	1255	-	1462	1740	-	2413	2650	3788	5280	6120	7090
TOTAL WEIGHT	TOP	kg	73	100	120	189	298	375	577	890	1540	1303	2010	1515	1754	2400	2555	3065	3909	-	-	-
LENGTH	SIDE	mm	972	1000	1140	1238	1330	1699	1767	1939	-	2089	-	2289	2414	-	2776	2919	3189	3410	3510	3860
LENGTH	TOP	mm	1072	1119	1240	1388	1373	1719	2096	2251	1280	2520	2140	2691	2823	2200	3119	3359	3617	-	-	-
WIDTH	SIDE	mm	162	176	177	235	235	290	357	395	-	508	-	508	508	-	610	610	665	700	720	800
WIDTH	TOP	mm	162	176	177	235	350	288	357	438	640	498	600	580	620	760	710	710	760	-	-	-
HEIGHT	SIDE	mm	370	420	470	540	660	790	900	1000	-	1200	-	1210	1250	-	1400	1450	1630	1780	1800	1920
HEIGHT	TOP	mm	240	260	280	330	350	450	480	470	680	520	750	580	600	750	780	800	800	-	-	-

WORKING PRESSURE		Kg/c㎡	90-120	90-120	90-120	100-130	110-140	120-150	130-160	150-170	150-180	150-170	160-180	160-180	160-180	160-180	160-180	160-180	160-180	160-180	160-180	180-220
REQUIRED OIL FLOW		I/min	15-30	20-40	25-50	30-60	40-70	50-90	60-100	80-110	90-120	90-120	125-150	100-150	120-180	150-190	180-240	200-260	210-290	260-320	260-320	320-450
IMPACT RATE		bpm	800-1400	700-1200	600-1100	500-1000	500-900	400-800	400-800	350-700	400-700	350-650	450-600	350-600	350-500	300-650	300-450	250-400	200-350	150-180	130-150	120-160
HOSE DIAMETER		inch	1/2	1/2	1/2	1/2	1/2	1/2	3/4	3/4	3/4	1	1	1	1	1	1-1/4	1-1/4	1-1/4	1-1/4	1-1/4	1-1/2
EXCAVATOE CLASS		ton	0.8-2.5	1.2-3.0	2.5-4.5	3.0-5.5	4.0-7.0	6.0-9.0	7.0-14	11-16	14-18	15-18	18-20	16-21	18-26	28-35	28-35	30-45	40-55	45-50	50-65	65-100

Video outgoing-inspection:Provided
Machinery Test Report:Provided
Warranty:1 Year, 12months
Condition:NEW
Applicable Industries:Demolition,Mining,Rock Breaking Jobs
Type:Hydraulic Breaker Silenced Type
Color:As Customer Requires
MOQ:1 Set
OEM/ODM:Acceptable
Supply Ability:10000 Set/Sets per Year
Port:YANTAI, QINGDAO OR OTHER CHINA MAIN PORT
